Quick Details

  • Type: Filling Machine
  • Condition: New
  • Application: Beverage
  • Packaging Type: Bottles
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Place of Origin: China (Mainland)
  • Brand Name: Waterhome
  • Model Number: XGF
  • Production: 3000bottles/hour-34000bottles/hour
  • Diameter Scale of Bottle: 50mm-105mm
  • Height Scale of Bottle: 150mm-320mm
  • Diameter scale of Bottle Mouth: 20mm-30mm
  • Drink Kind: Mineral Water,Pure Water,carbon drink,juice,tea
  • Filling Machine capacity scale of Bottle: 200-2000ml
  • Rotary wheel are fully made of: stainless steel AISI304.
  • spray nozzle: Spaying Systems Co. Ltd
  • Filling valves: made of AISI316L
  • Pneumatic components: Airtac

Packaging & Delivery

Packaging Details Standard export packing
Delivery Time 30 days after well receipt of deposit
Product Description

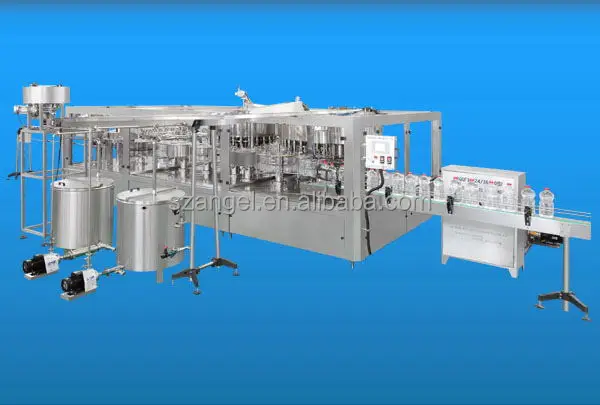

Bottling Machine,Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products, combining several-year-production experience of the company. The unit collects washing, filling and capping together. The bottling equipment is driven by a transmission motor. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. Bottle filling machine is an ideal liquid filling production equipment in the country. Filling and Bottling Machine is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user’s demands.



Main configuration of the bottling machine:
1) Material of filling valve and liquid tank is 304
2) Main motor:National brand
3) Sliding bearing:Taiwan
4) Frequency inverter: MITSUBISHI
5) Touch screen:Taiwan
6) PLC:MITSUBISHI
7) Pneumatic components:Airtac
8) Seals:National brand
9) Photocell switch and proximity switch:Taiwan



1. XGF Series (3-in-1) Washing Filling Capping Machine Mainly for Bottling natural mineral water,pure water,distilled water ,natural spring water,addtional mineral/spring water.

Working Process as follows

Bottles are fed from conveyor chain into the filling machine monoblock via star wheel. Bottle clamp installed on the rotary wheel of the rinse will grip bottle mouth and make a 180° turn along a guide track to face the bottle mouth downward. In designated section of the rinse, rinsing water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180° turn along a guide track to resume bottle mouth facing up position. Clean bottles are discharged out of the rinse by a star wheel to feed the filler. After entering the filler, bottles are retained by neck supporting carrier plates, which are actuated by bottle carrier mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process. Bottle carrier mechanism is lowered by a cam to disengage filled bottles with filling valves. Then bottles are transferred into the capper by a neck handling star wheel. Anti-rotation blades on capping heads will seize the bottleneck to prevent it from rotation and hold it in a upright position. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting, and disengaging under the control of a cam. A discharge star wheel discharges finished bottles onto discharge conveyor belt to be conveyed out of the filling monoblock.



Capacity Scale of Bottle: 350—2000ml;

Diameter Scale of Bottle: 50mm--90mm;
Height Scale of Bottle: 160mm-310mm;
Drink Kind: Mineral Water, Pure Water, Fruit Juice, Tea,Wine and other no-gas liquid.



Main technical parameters:

Model

XGF16126

XGF18186

XGF24248

XGF323212

Heads of washing,filling, sealing

16-12-6

18-18-6

24-24-8

32-32-12

Production capacity

3000-5000BPH

6000-8000

8000-10000

10000-12000

Suitable bottle diameter

φ=50-100mm, H=170mm, 330-2500ml

φ=50-100mm, H=170mm, 330-2500ml

φ=50-100mm, H=170mm, 330-2500ml

φ=50-100mm, H=170mm, 330-2500ml

Spraying pressure

0.2-0.25Mpa

0.2-0.25Mpa

0.2-0.25Mpa ³

0.2-0.25Mpa

Motor power

2.2kw

2.5kw

3kw

5.5kw

Stainless steel

 SS304

SS304

SS304

SS304

Electric voltage

380V50Hz

380V50Hz

380V50Hz

380V50Hz

PLC

Mitsubishi

Mitsubishi

Mitsubishi

Mitsubishi

Frequency converters

Mitsubishi

Mitsubishi

Mitsubishi

Mitsubishi

Touch screen

Mitsubishi

Mitsubishi

Mitsubishi

Mitsubishi

Circuit contactor

Siemens

Siemens

Siemens

Siemens

overall dimension

2400*1600*2500

2500*1800*2500

3100*2300*2800

3800*2800*2900

Weight

2500kg

3500kg

4500kg

6500kg



Main features of the water bottling machine XGF serise
1.Bottle in feed of the water bottling machine,XGF serise
1) Bottle in feed by combination of in feed screw and in feed star wheel
2) Equipped with bottle jam protection device.


2.Rinser of the washing filling capping machine
1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
3) Covering of bottle clamps and elevator are product of IGUS
4) The rinse is driven by driving system positioned inside machine frame via gear transmission.
3.Filler of the 3-in-1 bottling machine
1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.
5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.


4.Capper of the 3-in-1 bottling machine
1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine is important to running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
4) Highly effective acentric way for cap sorting to reduce the abrasion.
5) It has the check-up device to control the cover lift.strong>





Auxiliary equipment

Cap Elevator SG-1
1. Summary
This machine is the accessory of Washing-Filling-Capping 3-in-1 Unit. It can convey unorderly caps to the chute of the cap orderer and prepare for the next procedure. It has novel structure and is easy to operate, which has not only lightened the intensity of labor but also satisfied the sanitary requirement of the whole production line. So it is the necessary machine for the drink producing company of middle or top grade.
2. Technological Parameters
(1) Model: SG-1
(2) Production Capacity: 4000~12000pcs/h
(3) Power: 0.34KW
(4) Weight: 60KG
(5) Dimension: 700×500×800(mm)





2. DCGF Serise  (3-in-1) Washing Filling Capping Machine Mainly for Bottling Carbon drink,Carbonated Drink,soft drink,soda water,aerated water,sparkling water.



Intrpduce of the Carbon Drink Bottling Machine

DCGF Series Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products, combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal carbonated drink filling production equipment in the country. It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user’s demands.

1. Capacity Scale of Bottle: 350—2000ml;
2. Diameter Scale of Bottle: 50mm--105mm;
3. Height Scale of Bottle: 150mm-320mm;
4. Bottle cap: standard plastic screw cap
5. Drink Kind: Carbon drink,Carbonated Drink,soft drink,soda water,aerated water,sparkling water.



3. RCGF Serise  (3-in-1) Washing Filling Capping Machine Mainly For Bottling Juice and Tea whihc after  UHT.



Applicability of Juice and tea bottling machine, (Three-in One) Unit
RCGF Series Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products, combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal no-gas liquid filling production equipment in the country. It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user’s demands.
1. Capacity Scale of Bottle: 350—1500ml;
2. Diameter Scale of Bottle: 50mm--105mm;
3. Height Scale of Bottle: 160mm-310mm;
4. Drink Kind: Fruit Juice, tea; Mineral Water,



Bottling Machine refer other machine and bottling plant

Automatic Drink Bottling Plant,Automatic Liquid Bottling Line,Bottle Filling Line,Bottle Packaging Plant





Mineral water,spring water and other drinking water filling and bottling line. High auto, compact structure, beautiful appearance water bottling plants for sales.Design the bottled water plants according customer inquire.

Automatic water bottling line involves atomatic Blow Molding Machine , bottling machine (Three-in-one),labeling machine ,packing machine, and more.



Automatic Blow Molding Machine (Producing PET plastic container and bottles in all shapes and conveyor the bottle to bottling machine.It is widely used to produce the carbonated bottle,mineral water,pesticide bottles,oil bottle,cosmotics bottle,wide-mouth bottles ect)



Sleeve Labeling Machine(Bottle water out from the bottling machine and automatic sleeve labeling through the shrink labeling machine)





RO/UF Water Purification(Purified the source water and supply to bottling machine)
